Specifications

SATAKE・HotBalloon® Catheter

Catheter

The SATAKE・HotBalloon® Catheter is a radiofrequency (RF) ablation catheter and is indicated for recurrent symptomatic paroxysmal atrial fibrillation.
The system is equipped with an RF generator with an agitation pump, which is connected to a mixing tube for transferring fluid flow oscillations to the catheter; a syringe for inflating/deflating a balloon; and a 16 Fr dilator for dilating the puncture site.

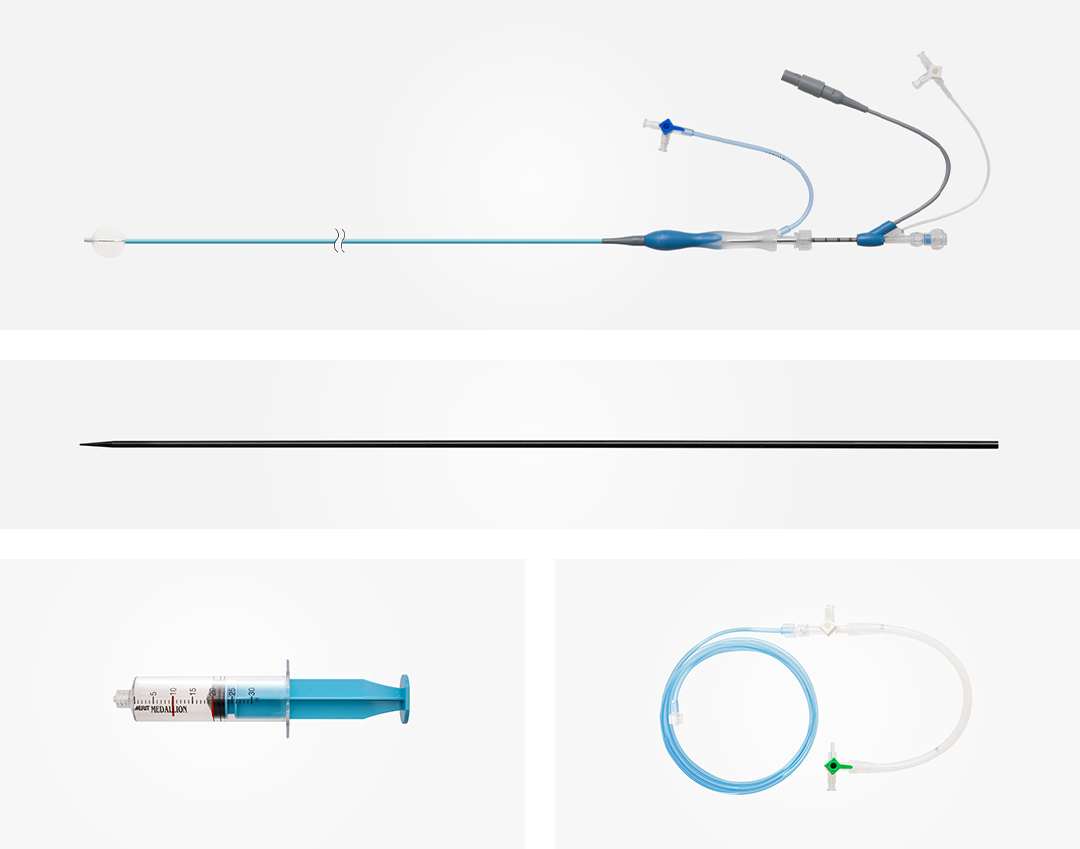

Components

  • Catheter
  • Accessories (mixing tube, syringe, 16 Fr dilator)

Size

Catheter Effective Length 915 mm
Balloon Length 30 mm
Balloon Diameter Recommended injection volume: 10 to 20 mL
With 10 mL injection: 26 mm
With 20 mL injection: 33 mm
16 Fr dilator Effective Length 700 mm
Taper Length 25 mm
Outer Diameter 5.4 mm

SATAKE・HotBalloon® Generator

Genarator

The SATAKE・HotBalloon® Generator is an RF generator for percutaneous cardiac catheter ablation for the treatment of tachyarrhythmia.
This RF generator delivers a maximum of 150W of RF energy to heat the fluid filling the balloon.
Furthermore, the fluid inside the balloon is agitated by fluid flow oscillations from a mixing pump attached to the RF generator to maintain a uniform temperature at the balloon surface.

Specifications

Maximum RF Power 150 W
RF Frequency 1.8 MHz

Front Panel

Front Panel

TRESWALTZ®

TRESWALTZ®

TRESWALTZ® is a deflectable guiding sheath used to percutaneously insert a cardiac catheter for diagnostic or therapeutic purposes into the atrium or ventricle.
TRESWALTZ® is designed to facilitate the placement of a cardiac catheter into the target position by operating the wheel on the handle whereby the far end of the catheter curves in one direction.

Components

  • Deflectable guiding sheath (sheath)
  • Dilator

Size

Sheath Effective Length 69.2 cm
Inner Diameter 4.3 mm to 4.7 mm
Dilator Effective Length 84.7 cm

Specifications of medical devices to be used in combination with TRESWALTZ®

Guide wire Outer diameter not to exceed 0.035 inches (0.89 mm)
Cardiac catheter 7 Fr to 13 Fr
