01Principle of the Catheter Ablation System

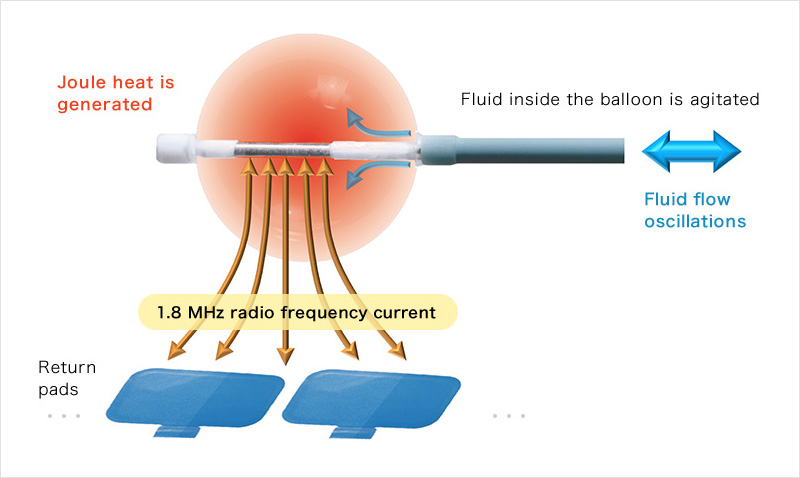

The catheter has a coil electrode inside the balloon. RF energy is delivered between the coil electrode and return pads placed on the patient’s back. As the RF current is concentrated to the electrode inside the balloon, Joule heat is produced in the fluid filling the balloon. Myocardial tissue is ablated by the heat conduction from the balloon. Furthermore, the fluid inside the balloon is agitated by fluid flow oscillations generated by the mixing pump attached to the RF generator to maintain a uniform temperature at the balloon surface.

How the Catheter Ablation System works

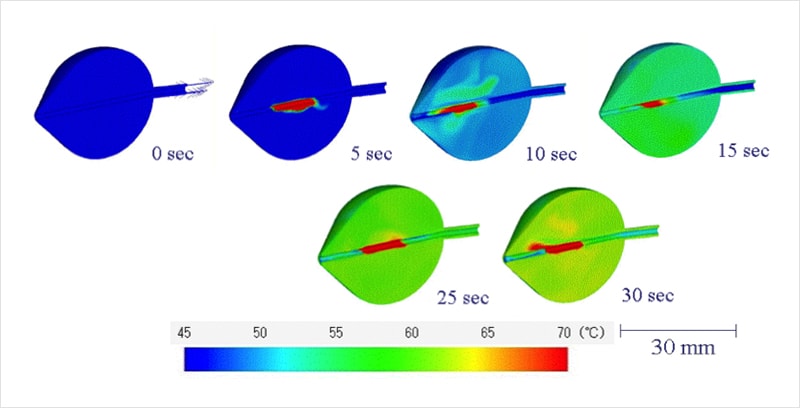

Results of the simulated agitation of the fluid inside the balloon

Agitation achieves uniformity of the temperature of the fluid inside the balloon. (In-house Lab Data)

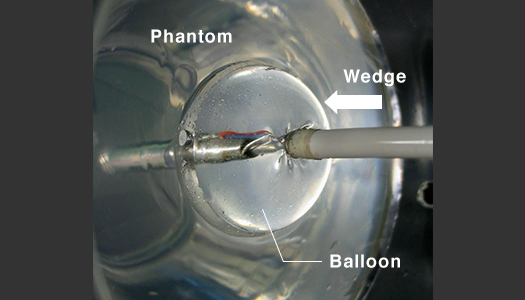

Ablation experiment using a thermoresponsive gel

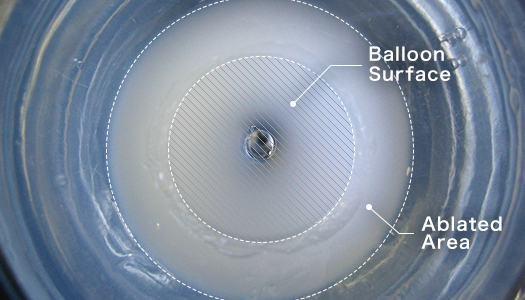

Circumferential ablation can be achieved with a single current application by fitting the balloon against the PV ostium and applying heat. (In-house Lab Data)

02Ablation of Tissues by Heat Conduction

As the SATAKE･HotBalloon® Catheter ablates tissue by heat conduction, the tissue temperature will be the highest at the surface in contact with the balloon and will gradually decrease at deeper levels. Accordingly, the heating principle of this product can be said to be of low risk for abnormal rises in temperature inside the tissue.

Temperature around the balloon (The results using phantom, preset temperature: 5 minutes)

(In-house Lab Data)

03Compliant Balloon

The SATAKE･HotBalloon® Catheter has a flexible, compliant balloon that allows for firm contact with a variety of anatomical configurations. The balloon diameter can be adjusted by injecting varying volumes of diluted contrast medium into the balloon. Recommended filler fluid volumes are 10 mL to 20 mL, and the balloon diameter can be adjusted from 26 mm to 33 mm.

A flexible, compliant balloon

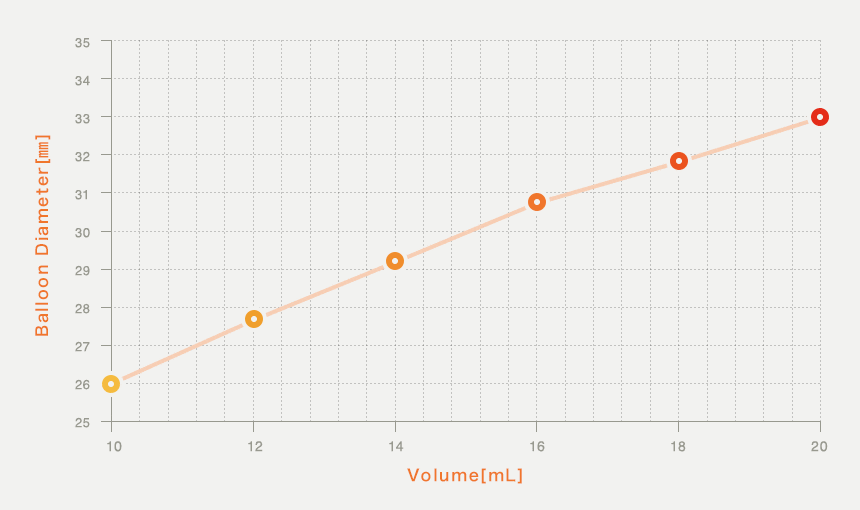

The relationship between fluid volume and balloon size

Injection Volume	10 mL	12 mL	14 mL	16 mL	18 mL	20 mL
Balloon Diameter	26 mm	28 mm	29 mm	31 mm	32 mm	33 mm

(In-house Lab Data)
